Bosch Rexroth

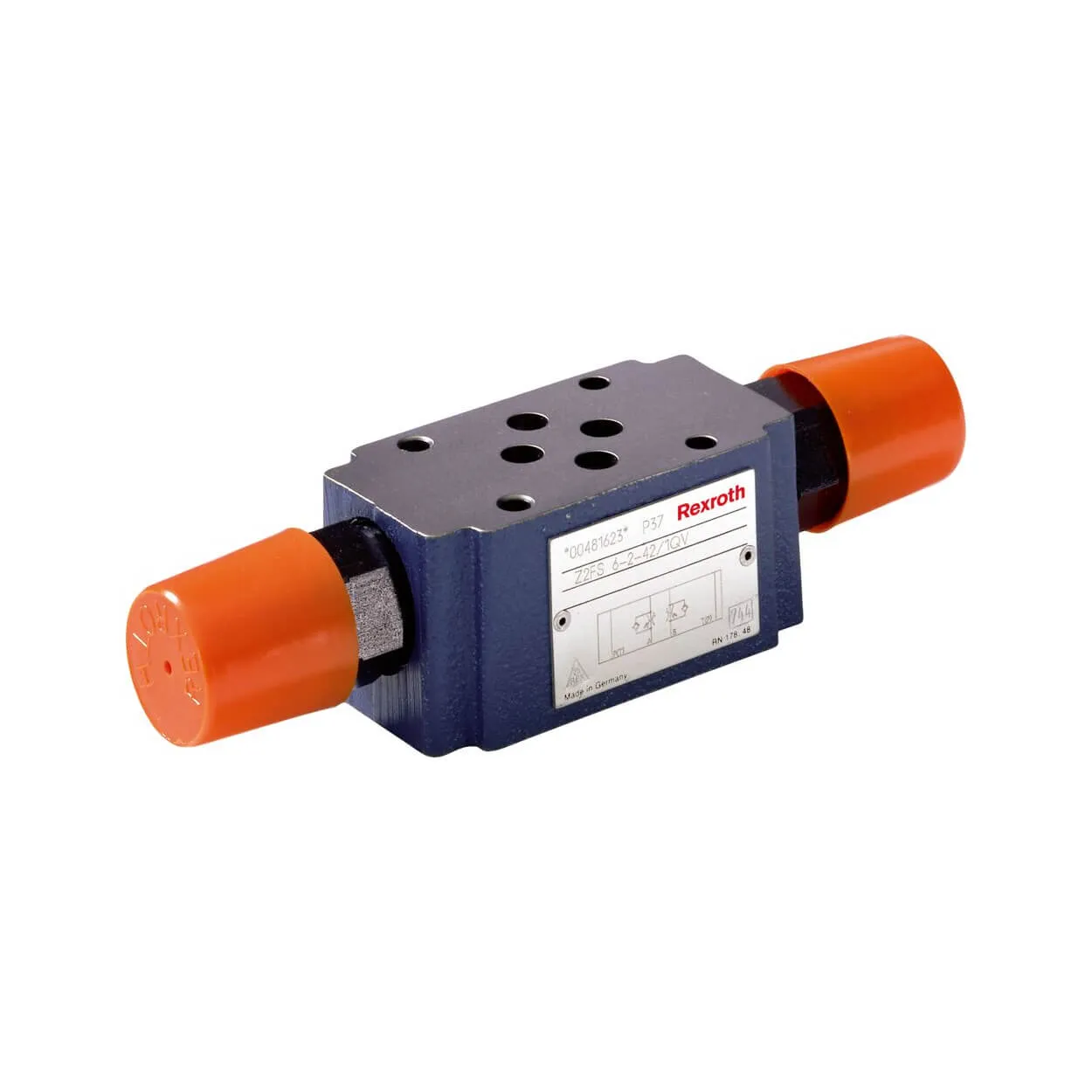

Z2FS6-2-4X/1QV Sandwich Plate Double Throttle/Check Valve
Material No:
R900481623
The Z2FS valve is a throttle check valve designed in a sandwich plate configuration, ideal for limiting main or pilot flow in one or two actuator ports. It comprises two throttle check valves aligned symmetrically, which restrict flow in one direction and permit free return flow in the opposite direction.
Specifications
- Size 6
- Maximum operating pressure 315 bar
- Maximum flow 80 l/min
- Component series 4X
Part Number
Material No
Size
Data Sheet
No items found.
Z2FS 6-2-4X/1QV
Material No:
R900481623
Overview
The Z2FS valve is a throttle check valve designed in a sandwich plate configuration, ideal for limiting main or pilot flow in one or two actuator ports. It comprises two throttle check valves aligned symmetrically, which restrict flow in one direction and permit free return flow in the opposite direction.
Features
- Sandwich plate valve
- Porting pattern according to ISO 4401
- 4 pressure ratings
- Adjustment types:- Setscrew with lock nut and protective cap- Lockable rotary knob with scale- Spindle with internal hexagon and scale- Rotary knob with scale
- For supply or discharge throttling
Specification
- Size 6
- Maximum operating pressure 315 bar
- Maximum flow 80 l/min
- Component series 4X
Applications
