Bosch Rexroth

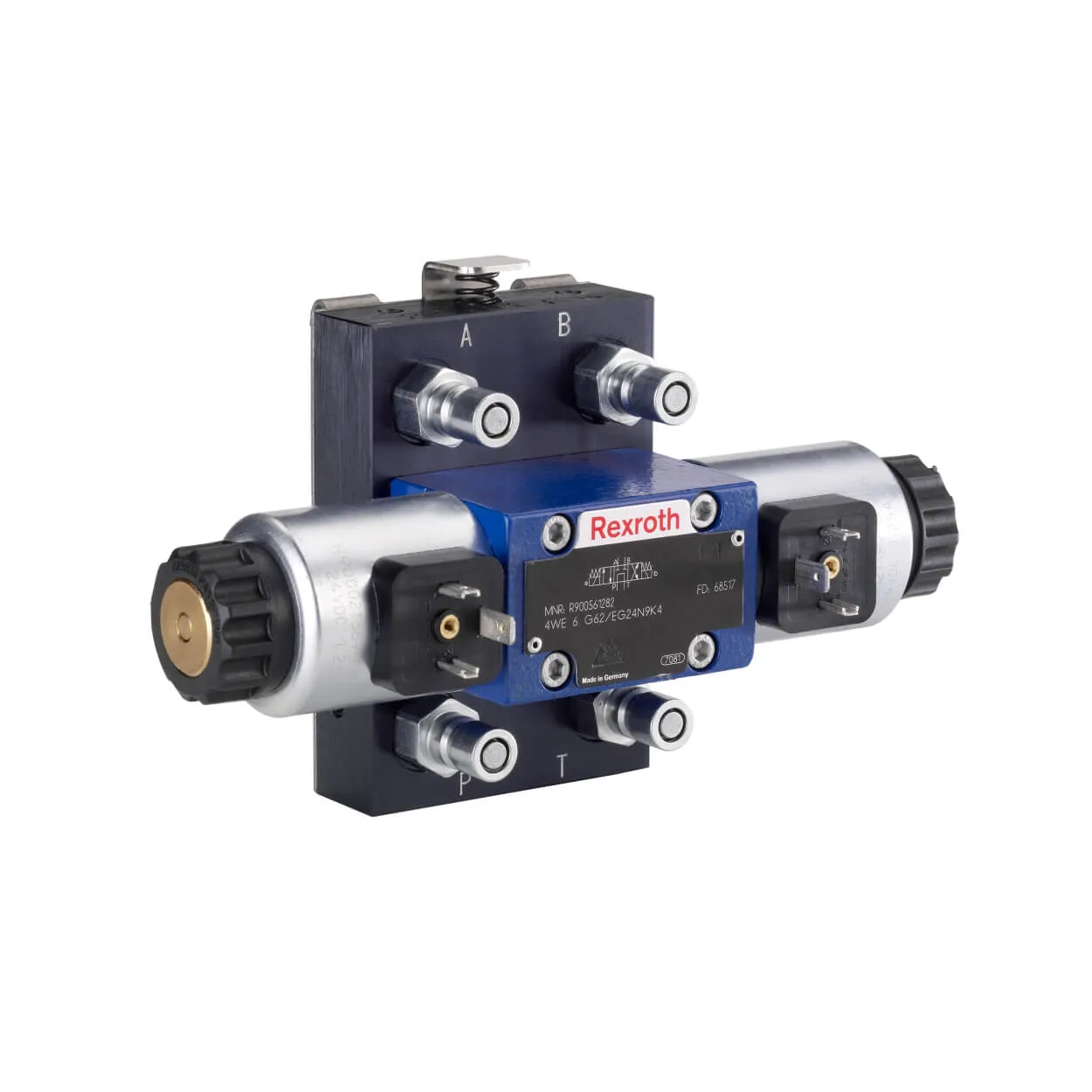

4WE6W6X/EG24N9K4 Directional Control Valve

Material No:
R900568233

The WE type valve is a direct-operated directional spool valve with solenoid actuation. It manages the start, stop, and direction of flow by moving a control spool within a housing bore, effectively connecting or isolating the flow paths.

Specifications
  • Size 6
  • Maximum operating pressure 350 bar
  • Maximum flow 80 l/min
  • Component series 6X
Part Number
Material No
Data Sheet
No items found.

4WE 6 W6X/EG24N9K4

Material No:
R900568233
Overview

The WE type valve is a direct-operated directional spool valve with solenoid actuation. It manages the start, stop, and direction of flow by moving a control spool within a housing bore, effectively connecting or isolating the flow paths.

Features
  • 4/3-, 4/2- or 3/2-way version
  • Porting pattern according to ISO 4401
  • High-power solenoid
  • Wet-pin DC or AC solenoids with detachable coil
  • The coil can be changed without having to open the pressure-tight chamber
  • Spool position monitoring
Specification
  • Size 6
  • Maximum operating pressure 350 bar
  • Maximum flow 80 l/min
  • Component series 6X
Applications
Back to
WE6../E 6X
